SAME Explorer 100 Clutch Housing Rebuild
Losing pressure and drive? This SAME Explorer3 100 needed a full clutch housing replacement and we had just the parts to make it happen.
July 10, 2025
SAME Explorer 100 Clutch Housing Rebuild
- ProPart
Grooves, leaks, and a whole lot of elbow grease – this fix needed the full works!
When you start losing pressure and drive, it’s never a great sign – especially if you’re running a SAME Explorer³ 100.
That’s exactly what happened to a customer up North recently, and the issue was worn-out clutch housing that had seen better days.
What went wrong?

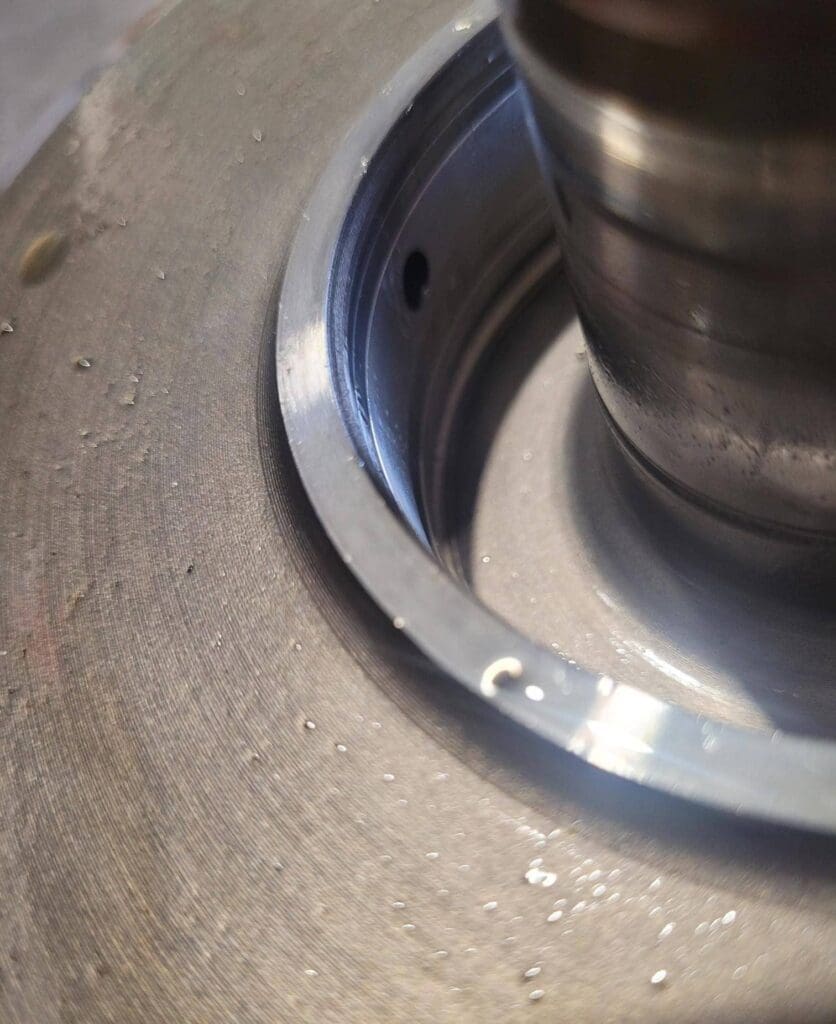

In this case, the sealing rings had worn deep grooves into the clutch housing, shown on the RH picture above. That kind of wear causes oil to leak out and pressure to drop – not ideal for a machine that needs to keep up with serious farm work.
Unfortunately, there’s no magic patch-up fix for this kind of issue. The only way to get this sorted? A new replacement of the clutch housing.
Lucky for them, they have ProPart on speed dial.Â
Parts that saved the day:
This customer took on the rebuild themselves, and we were more than happy to help make sure they had the right tractor parts lined up and ready to go.

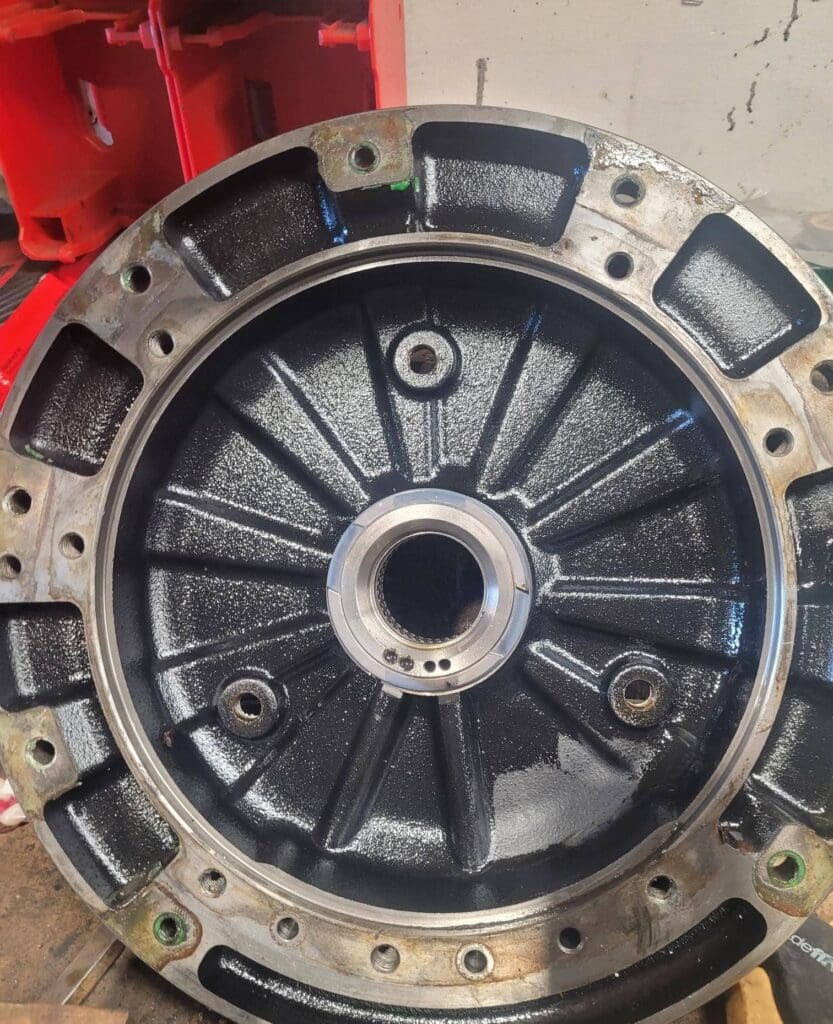

Clutch housing – 0.015.0344.3
Front cover plate – 0.013.9374.3/70

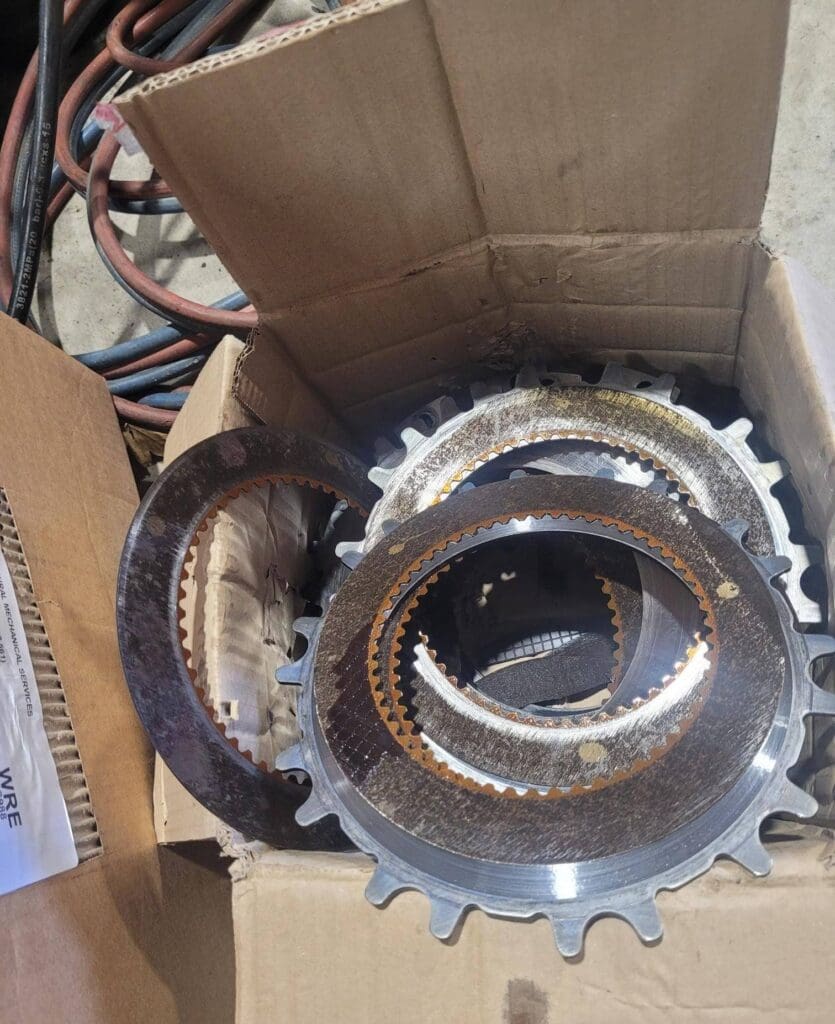

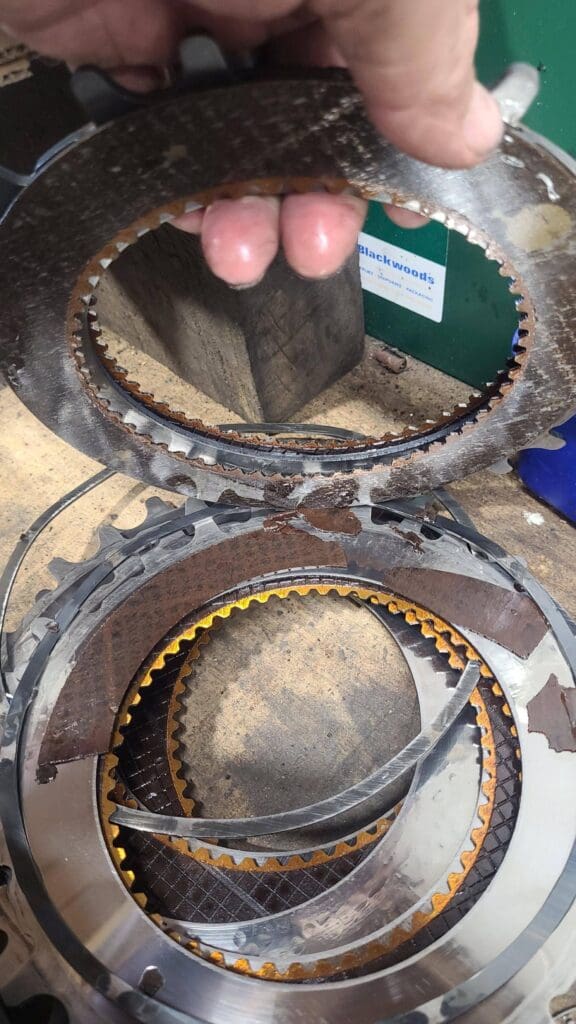

Clutch packs – 0.014.9919.3
Seals and bearings – 2.1529.166.0, 2.2725.050.0, 2.1499.254.0/10, 2.1539.230.0/10, 2.2999.228.0
With the right tractor parts in hand, the rebuild was back on track in no time.
One clutch housing, multiple machines
Fun fact: this wet clutch housing doesn’t just fit the SAME Explorer³ 100. It’s also used across the SAME Silver³ and Explorer³ series, and Deutz Agrofarm 5, 5G, and 5C models.
Check it out here:
Clutch Housing – 0.015.0344.3
Â
Tough jobs need tougher parts. Ask us for a quote on any tractor parts today!
We’re more than just a faceless website, we’re clued-up people, here to help. Browse our popular SAME parts here, or reach out directly with an enquiry.
We can be the sounding board you need to get the right part into your hands! Give us a shout.
We guarantee* to put the right parts in your hands, and aim to make it easy for you in the process.
Trust us, we’re Trusted by tractors. Parts made easy.
