Used Parts, Proven Fit: M600 Transmission Housing in an M620
- ProPart
The Job: Transmission Housing Damage on a Deutz-Fahr M620
Has this ever happened to you? We got a call from a customer reporting damage to the transmission housing on a Deutz-Fahr M620. Our expert parts team did some research into the machine, pulled up the diagram, and were able to find exactly where the damage was located.
The damage was in the second housing – and once we knew what we were dealing with, we knew exactly where to look.
The Fix: Used Parts, Proven Fit

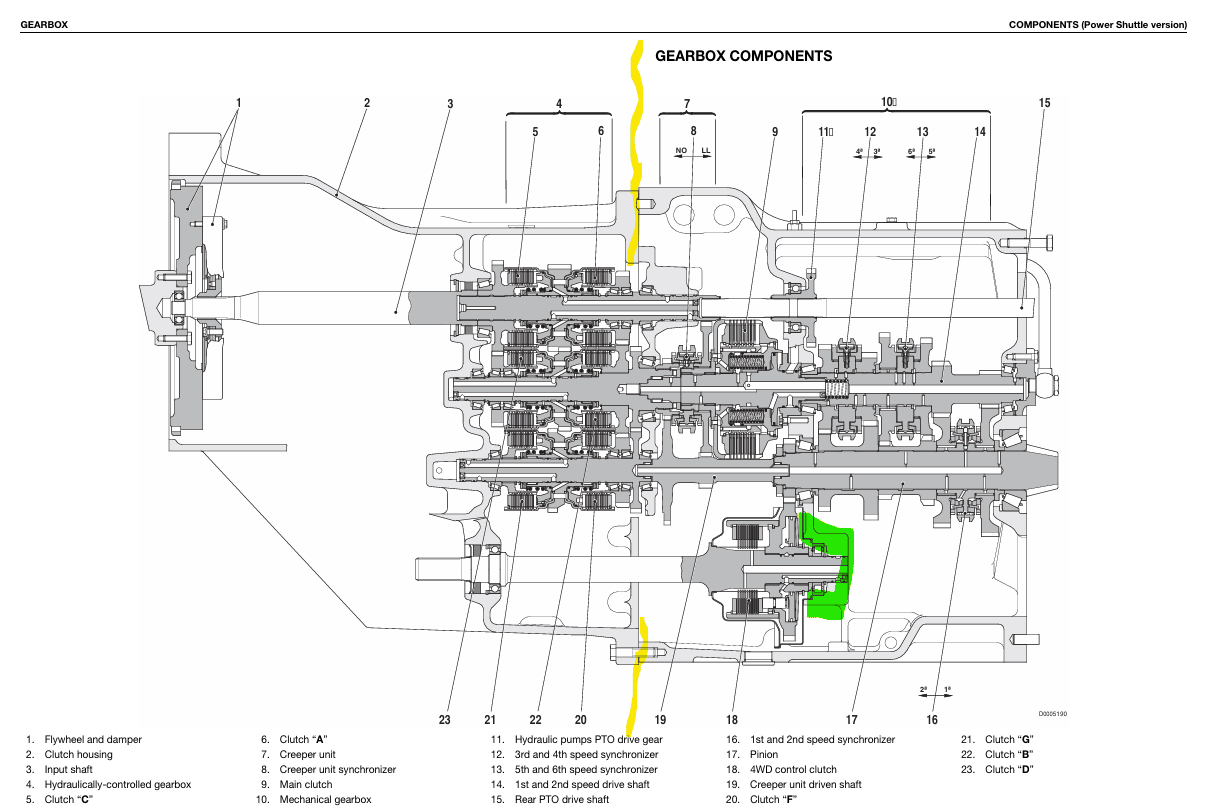

The damage was in the second housing (right side of yellow line). The damaged housing was something we had in stock – pulled from a Deutz-Fahr M600 sitting in our yard. The Deutz-Fahr M Series (M600–M650) all share the same transmission, making the M600 housing a perfect match for the M620. No modifications, no compromises, just a proven fit.
There was also damage to the 4WD output shaft. We had one out of an Agrotron 115 Mk3, which did the job perfectly.
We supplemented these used components with a new 4WD gear and clutch piston. We also supplied a full range of bearings, seals, 4WD clutch parts, and 4WD shaft parts – everything needed to bring the tractor back to new condition.
Some of the new parts we supplied were:
04436257 – 4WD Transmission Gear
0.900.2050.6 – 4WD Clutch Piston
0.900.2260.6 – Special Bearing
04438731.4 – Flywheel Damper Plate
Â
ProPart Insights: How to Prevent Transmission Housing Damage
Large, expensive repair? Yes. Preventable? Also yes.
What caused this damage is a 4WD shaft that hadn’t been greased. On tractors with front wheel suspension, the 4WD shaft connects the transmission to the front axle and needs to move in and out as the suspension travels. That movement relies entirely on the shaft being properly lubricated.
When it isn’t greased, the shaft seizes up instead of sliding freely. With nowhere to go, the force of the suspension pushes it back into the transmission housing, and that’s when the expensive damage happens.
If your tractor has front wheel suspension, make sure the 4WD shaft is on your greasing schedule!
The Call to Action: Used Parts That Work as Hard as New
What second-hand SAME or Deutz-Fahr parts might get your tractor going for less? We may just have what you’re looking for and with over 22 years of experience wrecking and supplying SAME and Deutz-Fahr tractors, we know exactly what fits what.
Give us a call and let our team do the research for you.
Â
Tough jobs need tougher parts. Ask us for a quote on any tractor parts today!
We guarantee to put the right parts in your hands, and aim to make it easy for you in the process.
Â
Trusted by tractors. Parts made easy.
